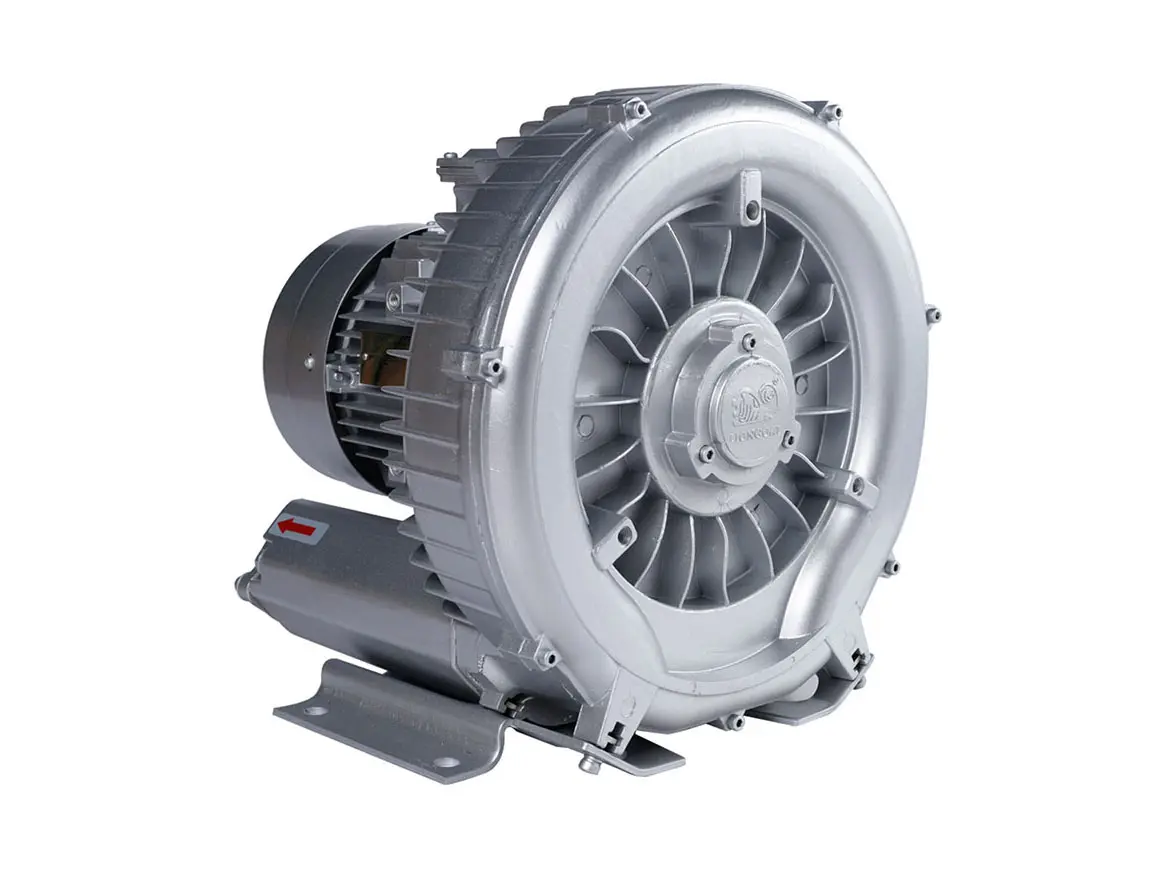

Ring Type Air Blower-1.jpg

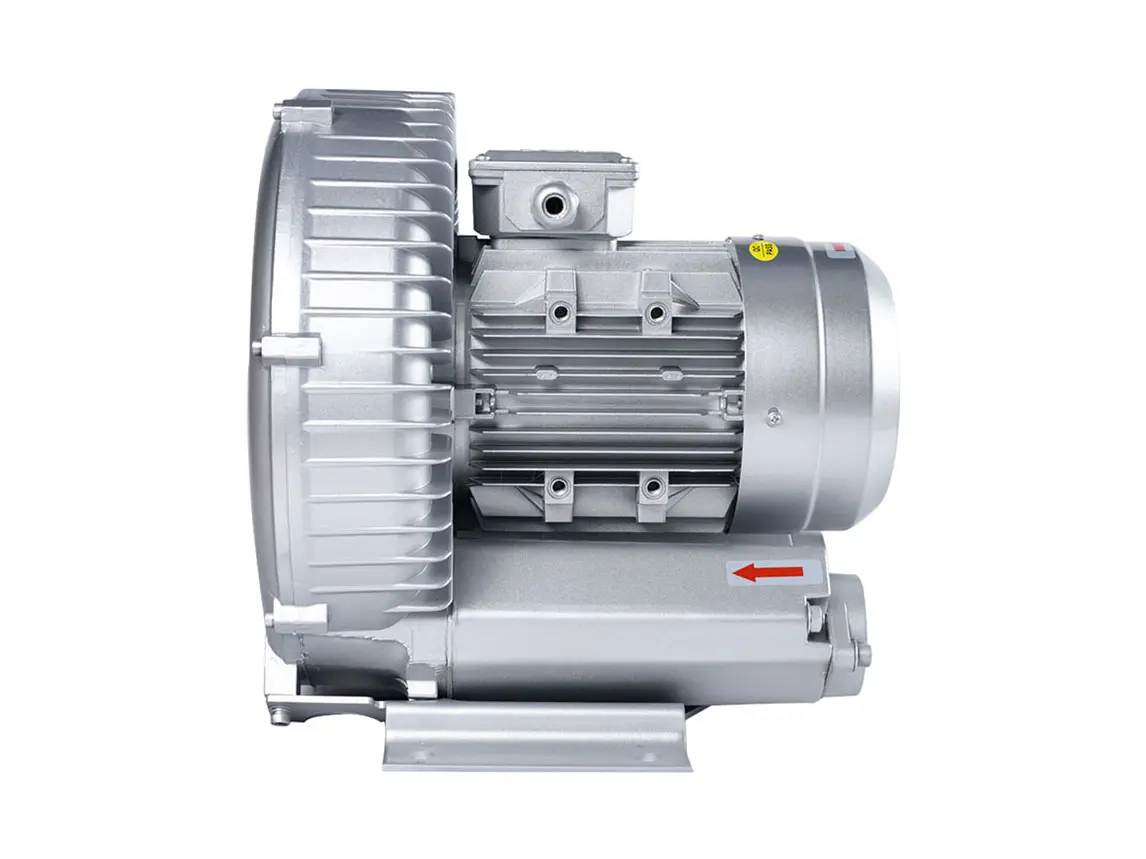

Ring Type Air Blower-2.jpg

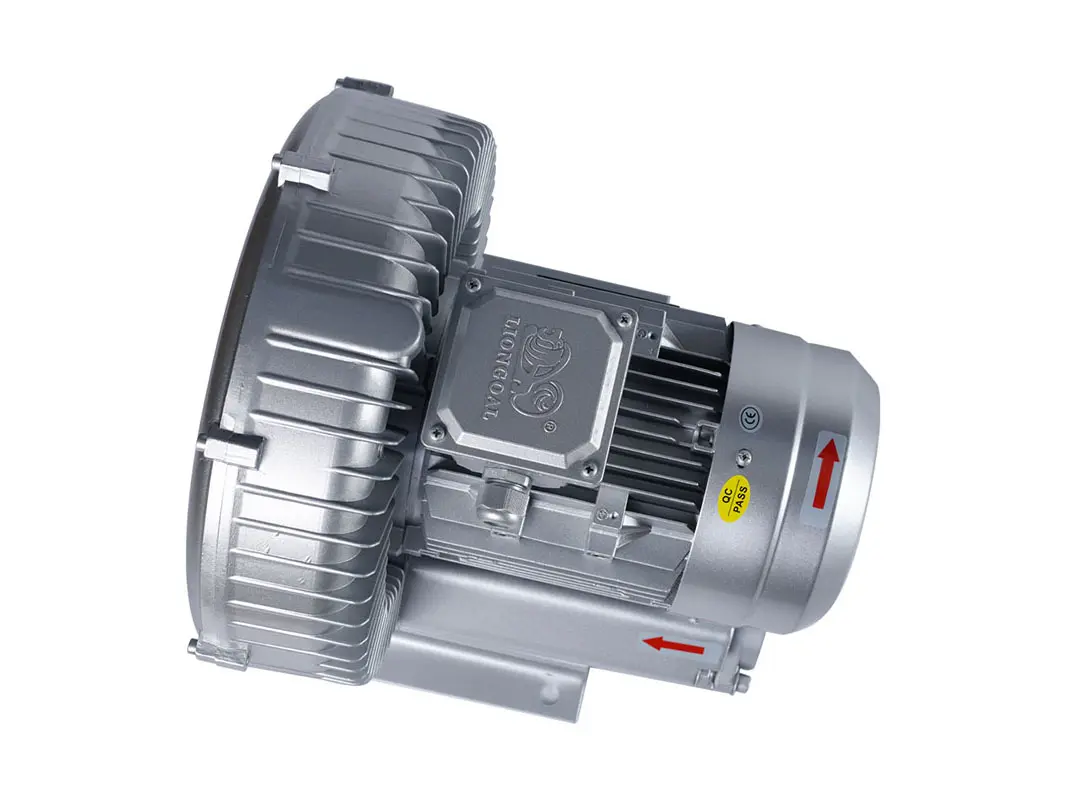

Ring Type Air Blower-3.jpg

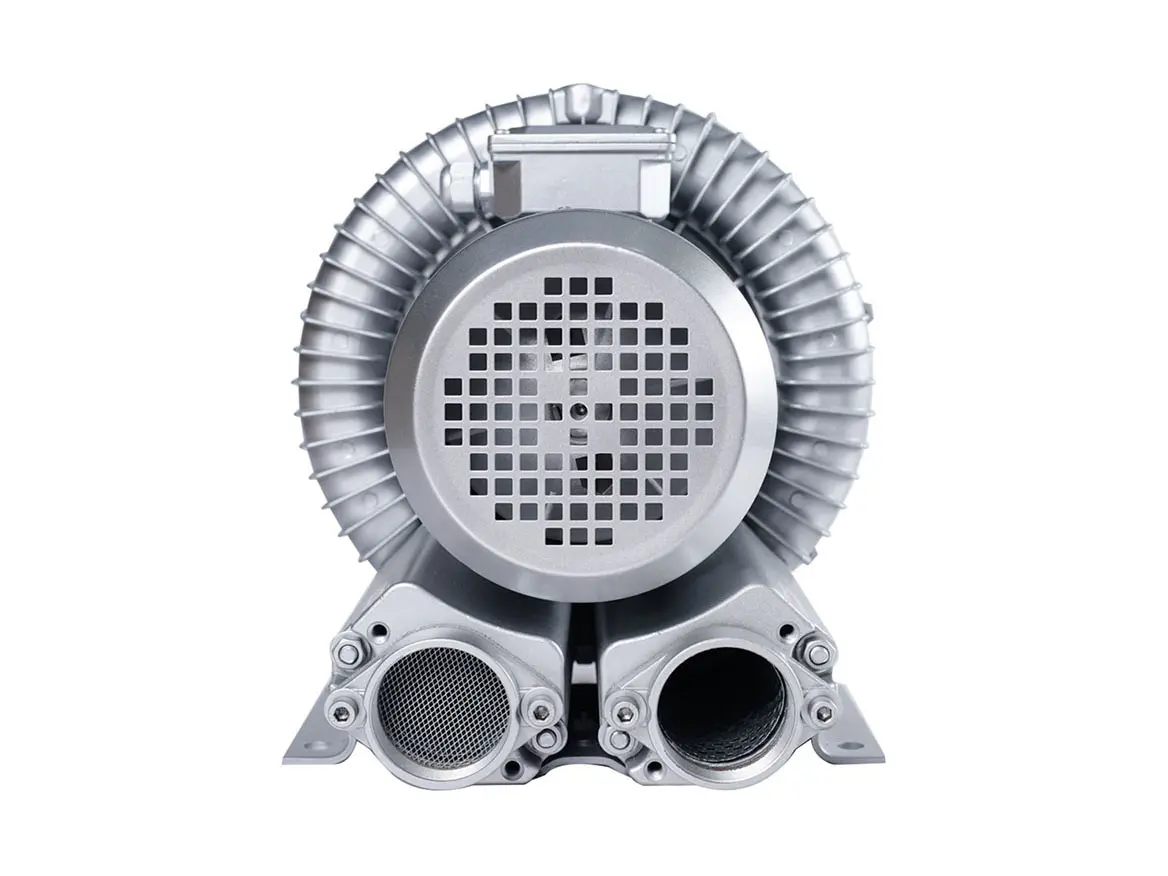

Ring Type Air Blower-4.jpg

2LG510 Three Phase 380V Ring Type Air Blower for Suction Machine

It consists of a circular casing, an impeller with blades, and a motor. The circular casing forms a ring - like structure, and the impeller is located inside the casing. It has several advantages, such as high pressure, low noise, and stable operation. It can provide a relatively large air volume under a certain pressure, and is suitable for various applications that require a stable air supply.

    Contact us

    Product introduction

    A ring type air blower, also referred to as a side channel blower, is a kind of air - moving device with unique structure and working principle. It is widely used in many fields. In the industrial field, it is used for pneumatic conveying, vacuum suction, and cooling. In the environmental protection field, it is used in sewage treatment and air purification systems. In the agricultural field, it can be used for grain drying and ventilation. Jiangxi Sop Industrial Co., Ltd. is professional blower's supplier in China with more than 20 years production and sales experience, we offer 2 years quality assurance for our blowers. We have established partnerships with 5000+ clients from all over the world.

    ring blower-11

    Features

    1. Two-year warranty, no need for daily maintenance

    2. Long term durability, 24-hour continuous work

    3. Balanced design of dual bearings

    4. 100% copper coil of motor, aluminum alloy shell

    5. Low noise, quiet operation,

    6. Oil free, impeller connected to the motor directly

    7. Dual usage of blowing and suction

    8. Wide application

    Parameters

    Product Name

    Ring Type Air Blower

    Model

    2LG510 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    0.85/0.95/1.3/1.5/1.6/2.1/2.2/2.55Kw

    Voltage

    380V

    Max Airflow

    210/255m³/h

    Max Vacuum

    -110/-180/-170/-150/-200/-220/-260mbar

    Max Compressor

    100/70/170/140/190/210/270/290mbar

    Caliber

    G2inch

    Power Source

    Electric

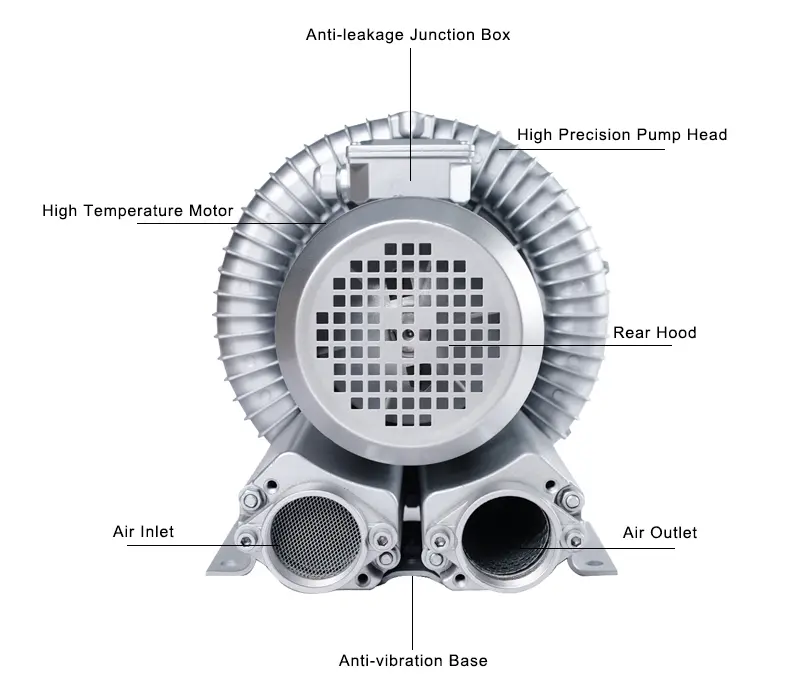

    Details

    Ring Type Air Blower-6

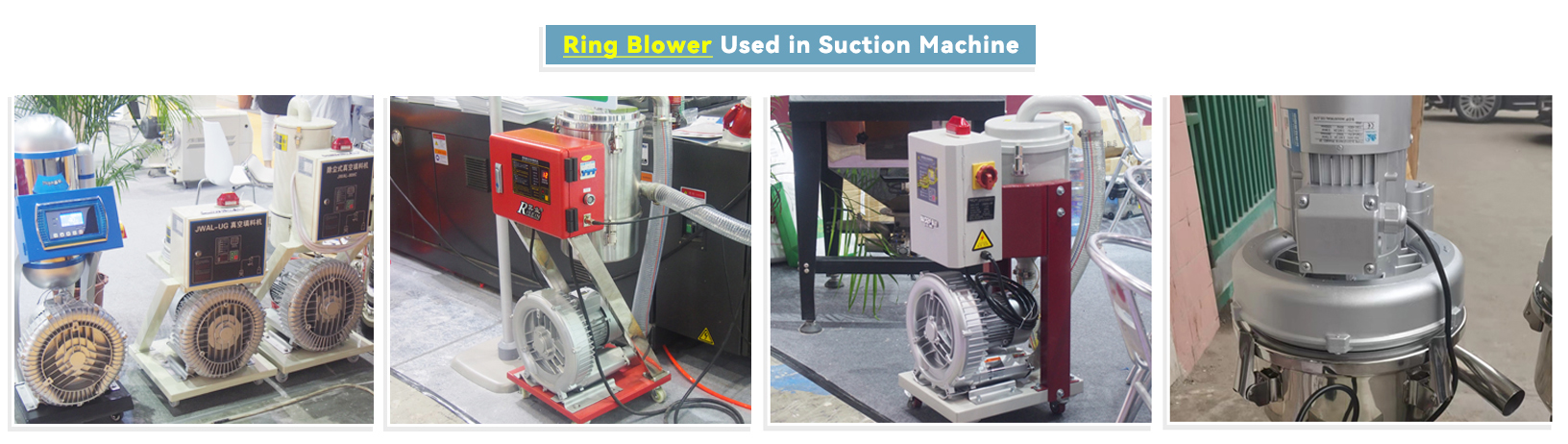

    Application

    It is widely used in many fields. In the industrial field, it is used for pneumatic conveying, vacuum suction, and cooling. In the environmental protection field, it is used in sewage treatment and air purification systems. In the agricultural field, it can be used for grain drying and ventilation.

    Ring Type Air Blower-7

    Customers Show

    ring blower-7
    ring blower-8
    ring blower-9
    Ring air blower-11
