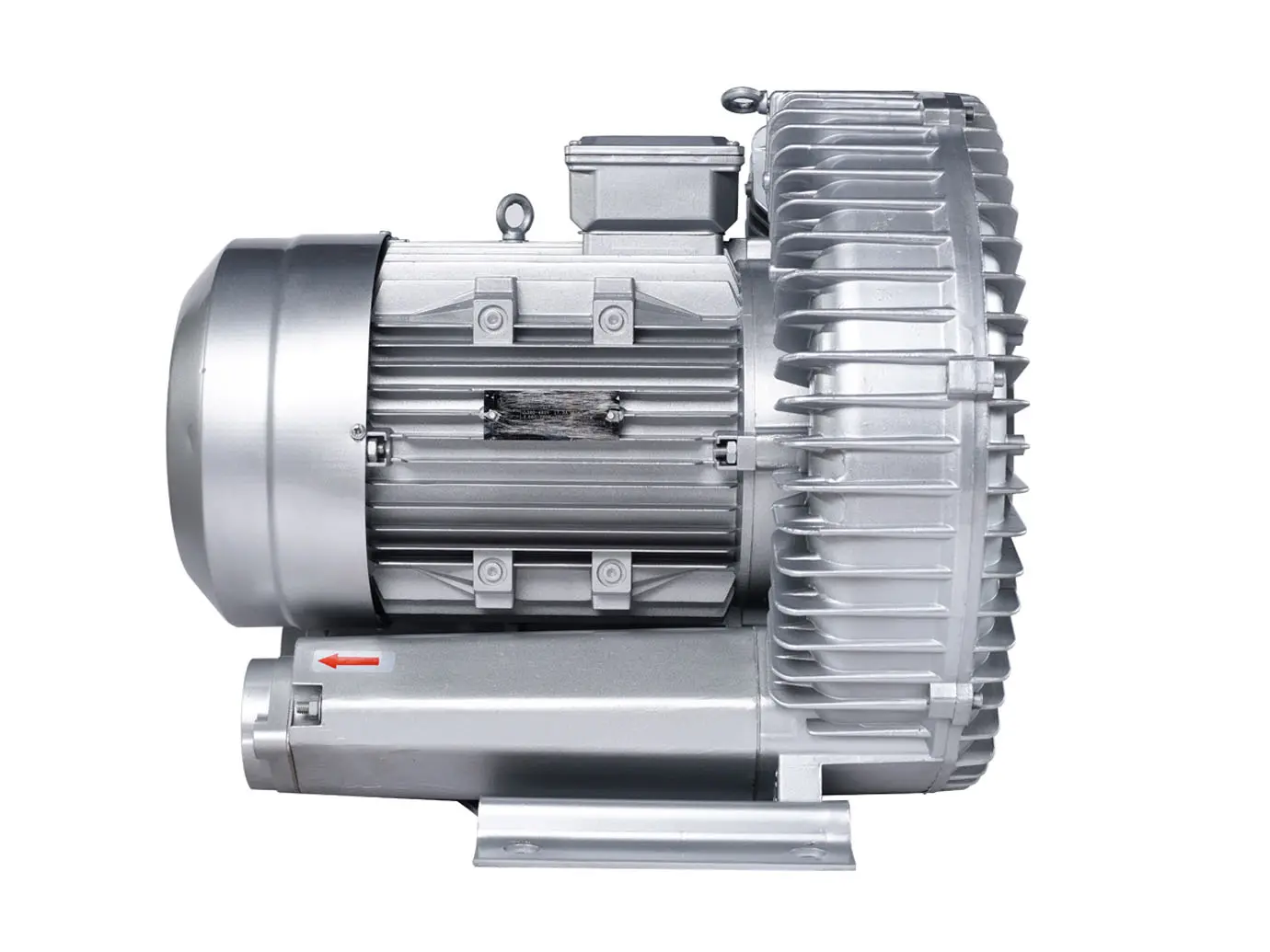

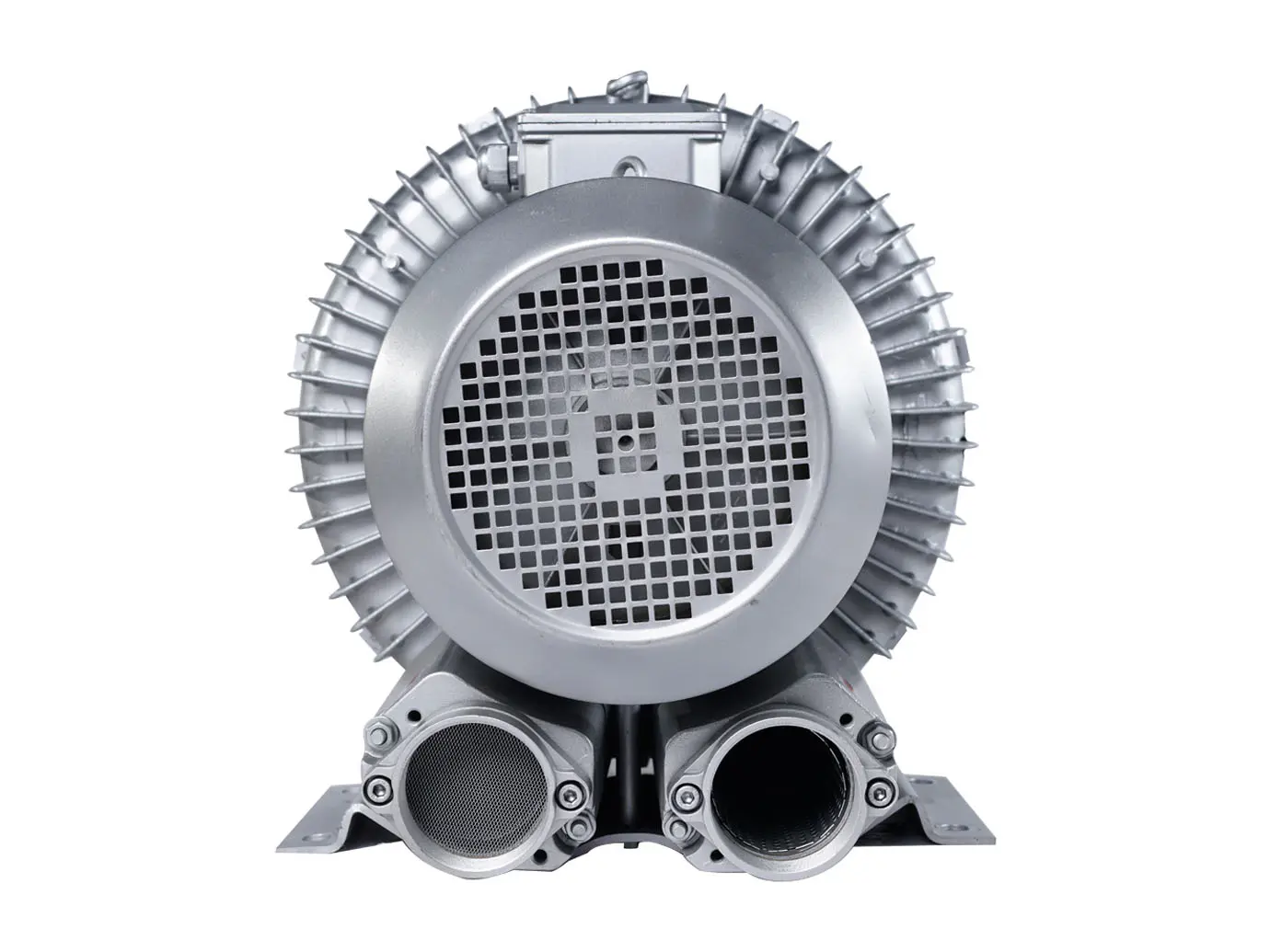

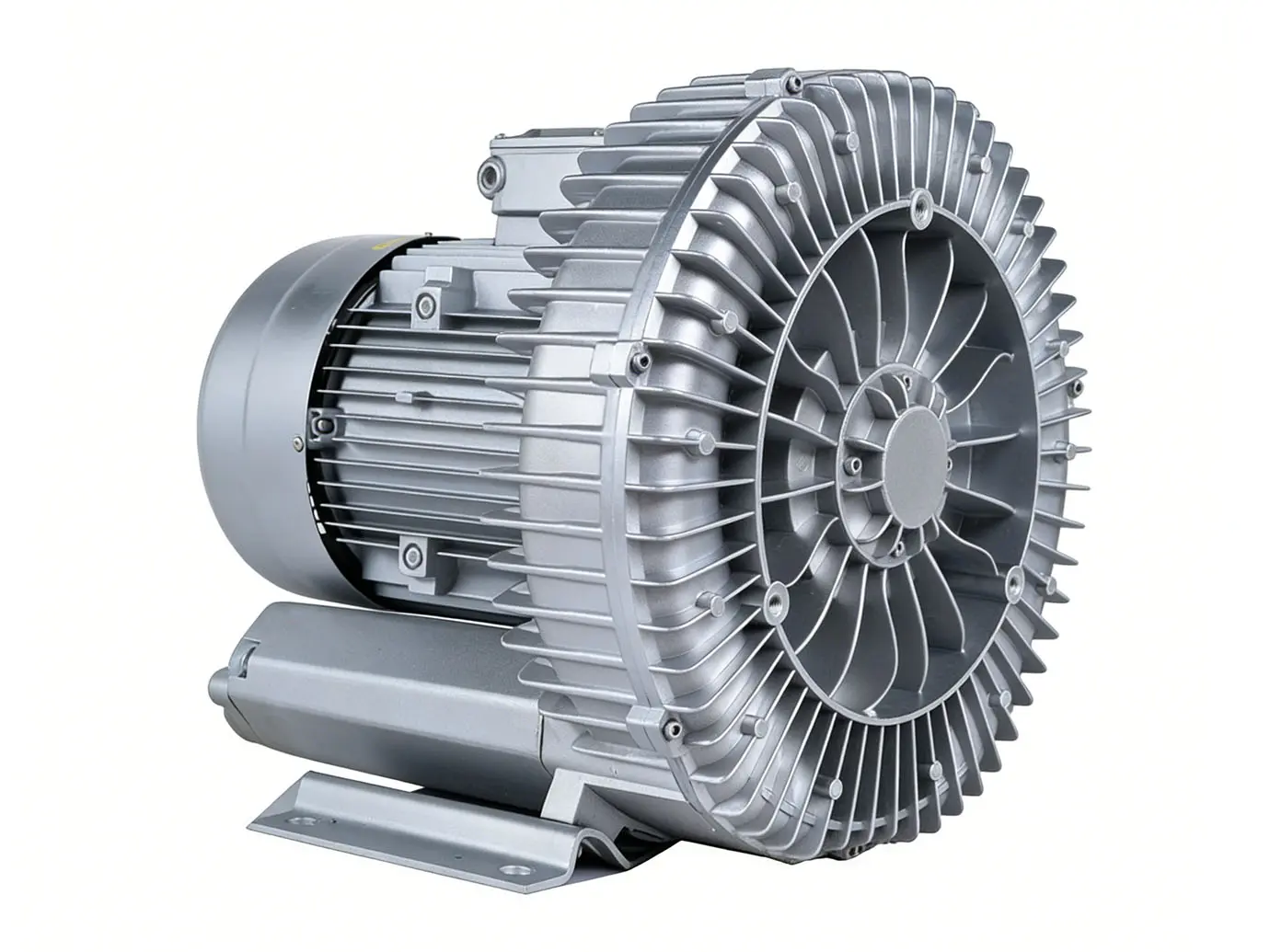

2LG830 High Grade Direct Manufacturer Ring Blower for Tunnel Ventilation

The electric side channel blower operates on the regenerative principle. As the impeller rotates, air is drawn into the inlet. The rotating impeller accelerates the air, and then the air flows through the side channel. In the side channel, the air gains energy due to the centrifugal force and the interaction with the impeller, resulting in an increase in pressure.

    Contact us

    Product introduction

    It is a high-performance, reliable, and cost-effective solution for modern tunnel ventilation systems. Its unique regenerative design, compact structure, oil-free operation, and high-pressure capability address the core challenges of long-distance air delivery, smoke extraction, and stable ventilation in road, railway, and urban utility tunnels. With minimal maintenance and superior energy efficiency, it has become the preferred choice for tunnel engineers worldwide. Jiangxi Sop Industrial Co., Ltd. is professional blower's supplier in China and we have established partnerships with 5000+ customers from all over the world. We can offer ODM & OEM services.

    ring blower-11

    Features

    1. Two-year quality assurance

    2. Long service life, 24-hour continuous work

    3. Balanced design of double bearings

    4. Aluminum alloy shell, 100% copper coil of motor

    5. Quiet operation, low noise

    6. Oil free, impeller connected to the motor directly

    7. Dual usage of blowing and suction

    8. Large Air Volume

    Parameters

    Product Name

    Ring Blower

    Model

    2LG830 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    4/4.6/5.5/6.3/7.5/8.6Kw

    Voltage

    380V

    Max Airflow

    700/840m³/h

    Max Vacuum

    -150/-90/-200/-180/-270mbar

    Max Compressor

    140/90/190/180/260/260mbar

    Caliber

    G2-1/2inch

    Power Source

    Electric

    Details

    High Pressure Ring Blower-6

    Application

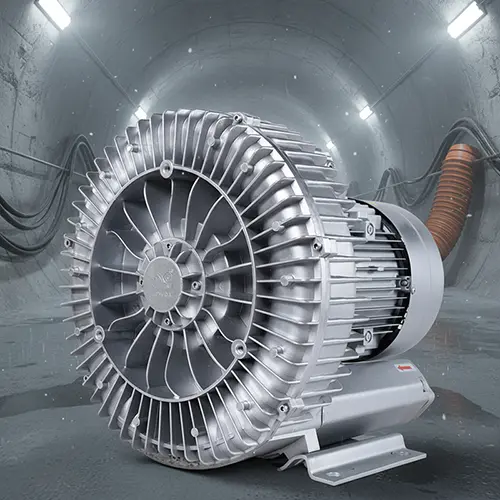

    Ring blowers are widely applied in tunnel ventilation, water treatment, aquaculture, food processing, packaging, industrial automation, textiles, electronics, construction, and environmental engineering for air supply, suction, aeration, conveying, drying, and dust extraction.
    Ring Blower Manufacturer-7

    Customers Show

    electric side channel blower-8
    ring blower-8
    ring blower-9
    High Pressure Ring Blower-11
