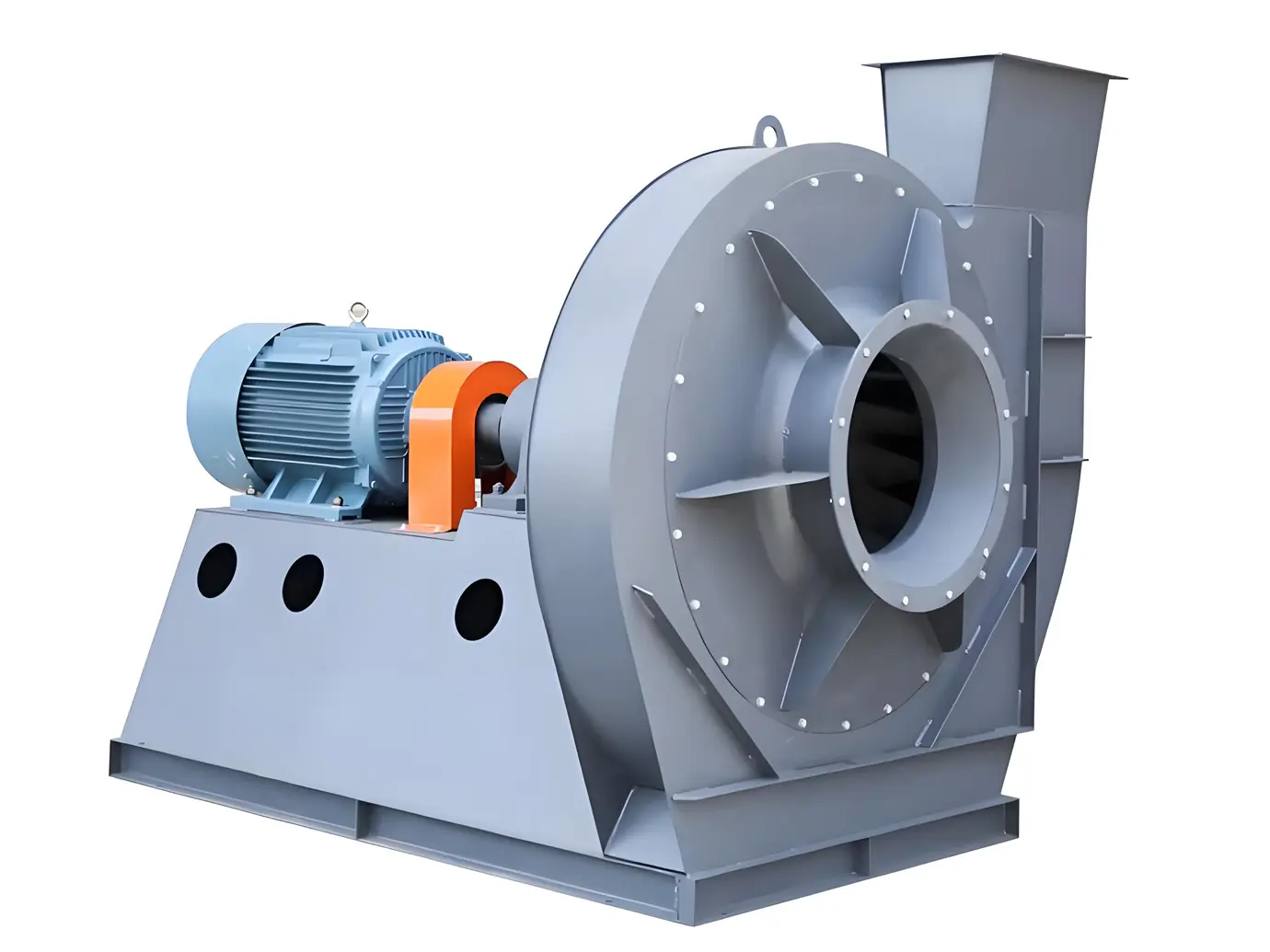

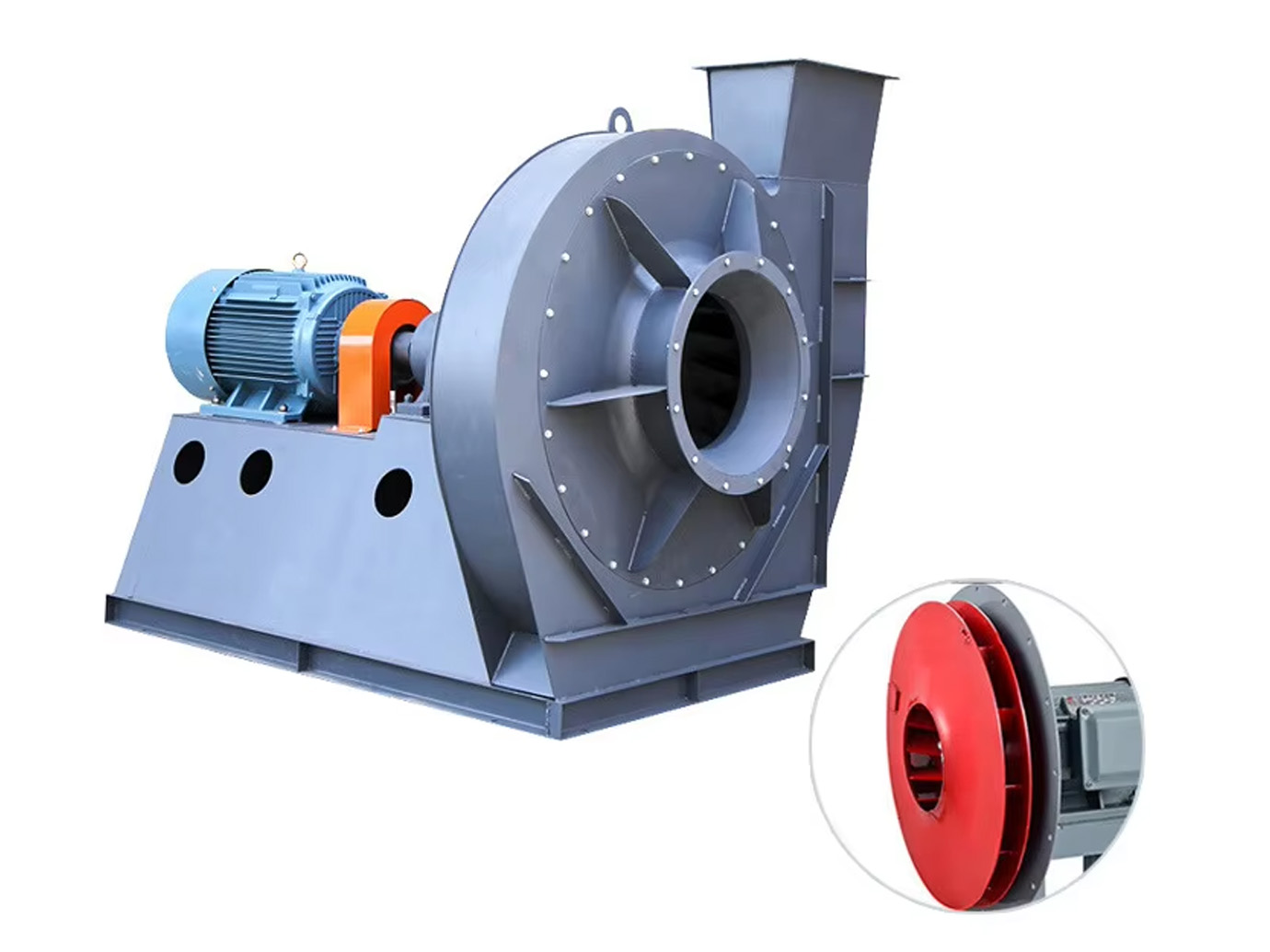

SOP9-19D Professional Manufacturer High Pressure Centrifugal Fan for Material Conveying

A high pressure centrifugal fan is a specialized air-moving device engineered to generate far higher static pressure than standard centrifugal and axial fans. Operating on the principle of centrifugal acceleration, it draws air into the center of its rotating impeller, accelerates the air radially outward, and converts kinetic energy into high static pressure to deliver a consistent airflow even against significant system resistance. This unique high-pressure capability makes it an indispensable piece of equipment across industrial, commercial, and specialized processing applications where standard fans cannot meet pressure requirements.

Product introduction

High pressure centrifugal fans follow the fundamental principle of centrifugal dynamics: when the motor drives the impeller to rotate, air is drawn into the fan inlet, centrifugal force pushes the air along the impeller blades towards the volute casing, and the expanding volute slows the airflow, converting its kinetic energy into static pressure before discharging it through the outlet. This pressure-building mechanism allows high pressure models to deliver 2 to 10 times the static pressure of standard centrifugal fans. Jiangxi Sop Industrial Co., Ltd. is professional centrifugal fan's manufacturer in China with more than 20 years production and sales experience, we not only provide products and accessories, but also provide one-stop solutions. We have served more than 5000 customers from all over the world.

Features

1. Versatility

2. Strong power

3. Quiet operation, low noise

4. High efficiency

5. Low vibration

6. Energy saving

7. Easy installation

8. Low Maintenance

Parameters

Product Name	High Pressure Centrifugal Fan
Model	SOP9-19D
Structure	Centrifugal
Current Type	AC
Rated Power	15-410Kw optional
Voltage	220V/380V
Airflow	4610-63305m³/h optional
Material	Iron
Mounting	As picture
Power Source	Electric

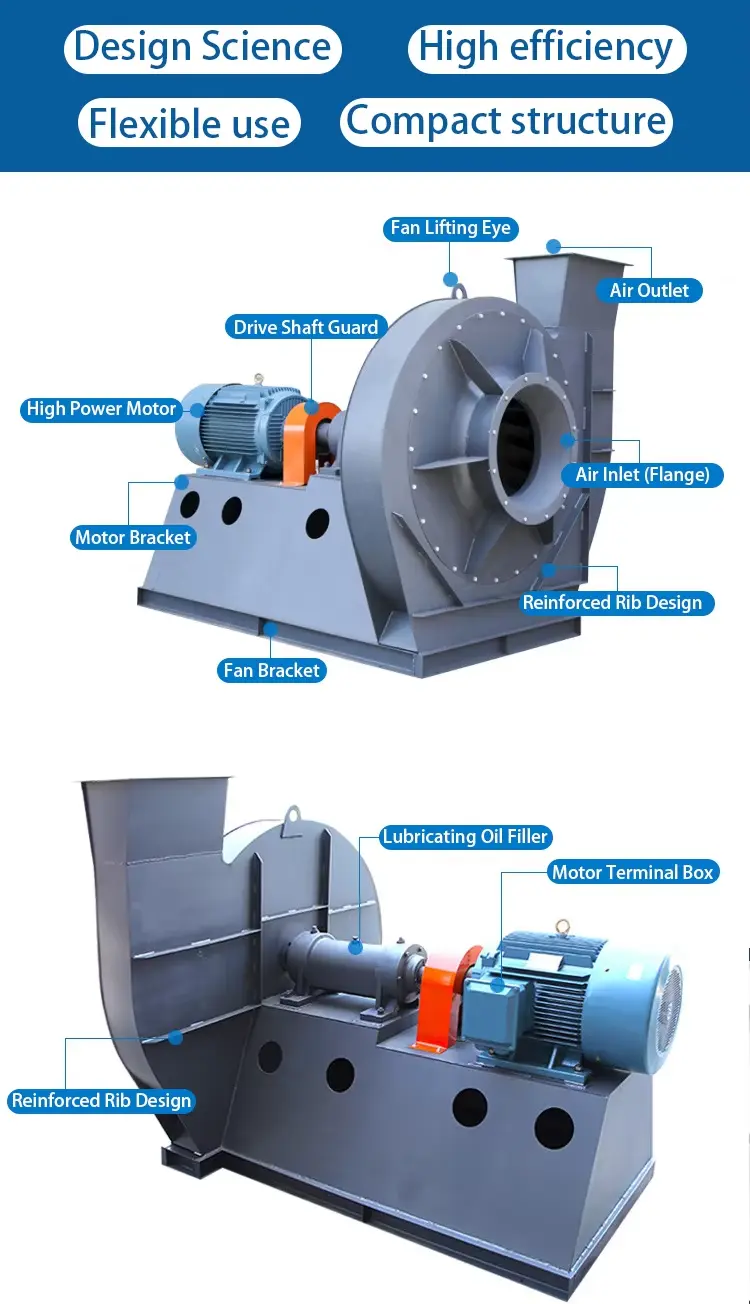

Details

Application

It can be used in: Pneumatic Material Conveying: They are the most common power source for pneumatic conveying systems, used to transport powders, grains, plastic pellets, and other bulk materials through closed pipelines in food processing, chemical, and plastic manufacturing industries. Industrial Dust Extraction and Air Pollution Control: In systems for dust removal, fume extraction, and flue gas treatment, their high pressure can overcome the resistance of baghouses, electrostatic precipitators, and long exhaust ducts, ensuring effective capture and removal of pollutants. Boiler and Forging Furnace Ventilation: They are used as forced draft fans for industrial boilers and forging furnaces, delivering high-pressure combustion air to support efficient fuel burning, improving thermal efficiency and reducing emissions. Industrial Cleaning and Blowing: High pressure airflow from these fans is used for surface cleaning, blowing off debris, drying products after washing, and cooling hot workpieces in manufacturing lines. Printing and Packaging Industry: In blown film extrusion and other plastic packaging processes, they provide consistent high-pressure air to form and cool plastic film, supporting stable production quality.
